Description

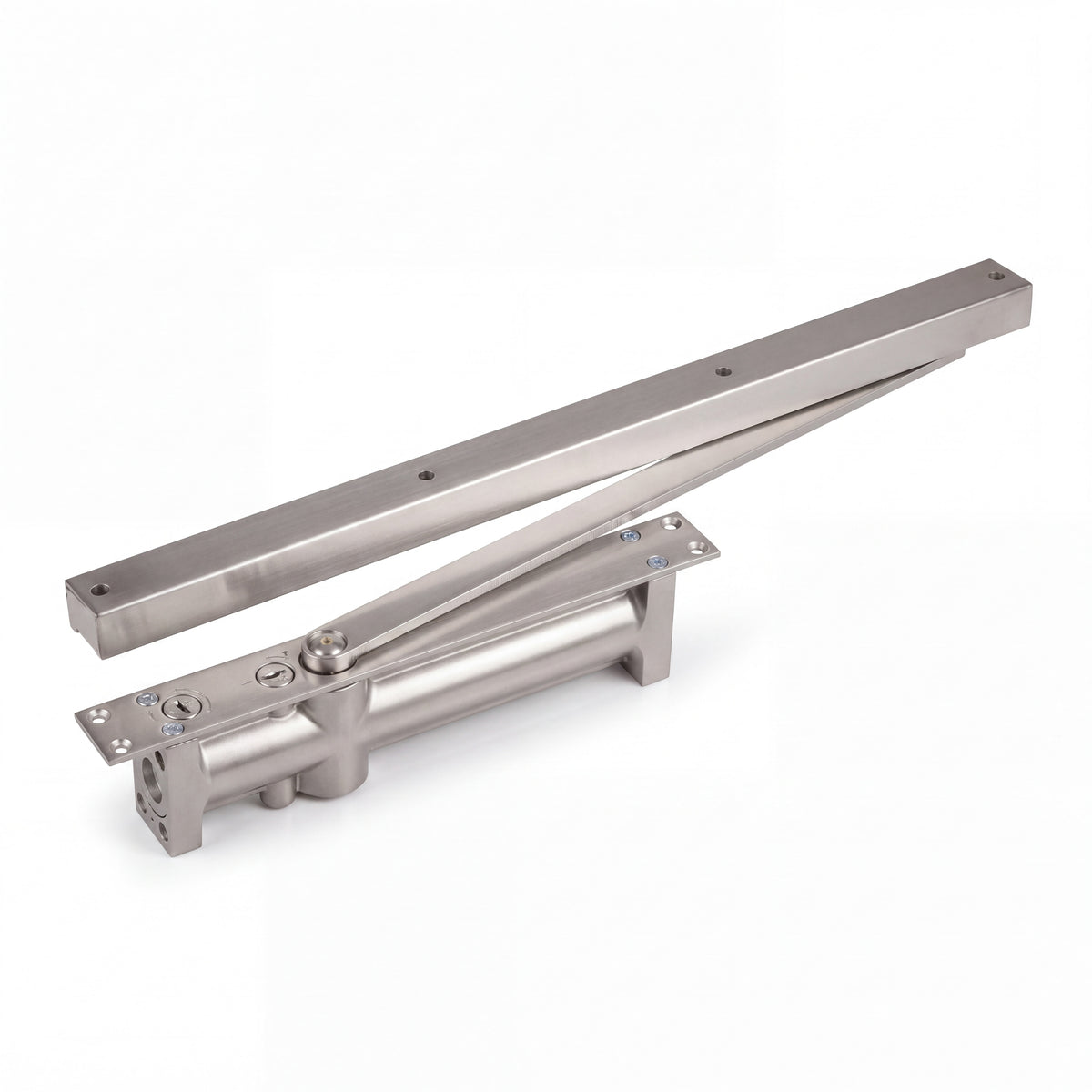

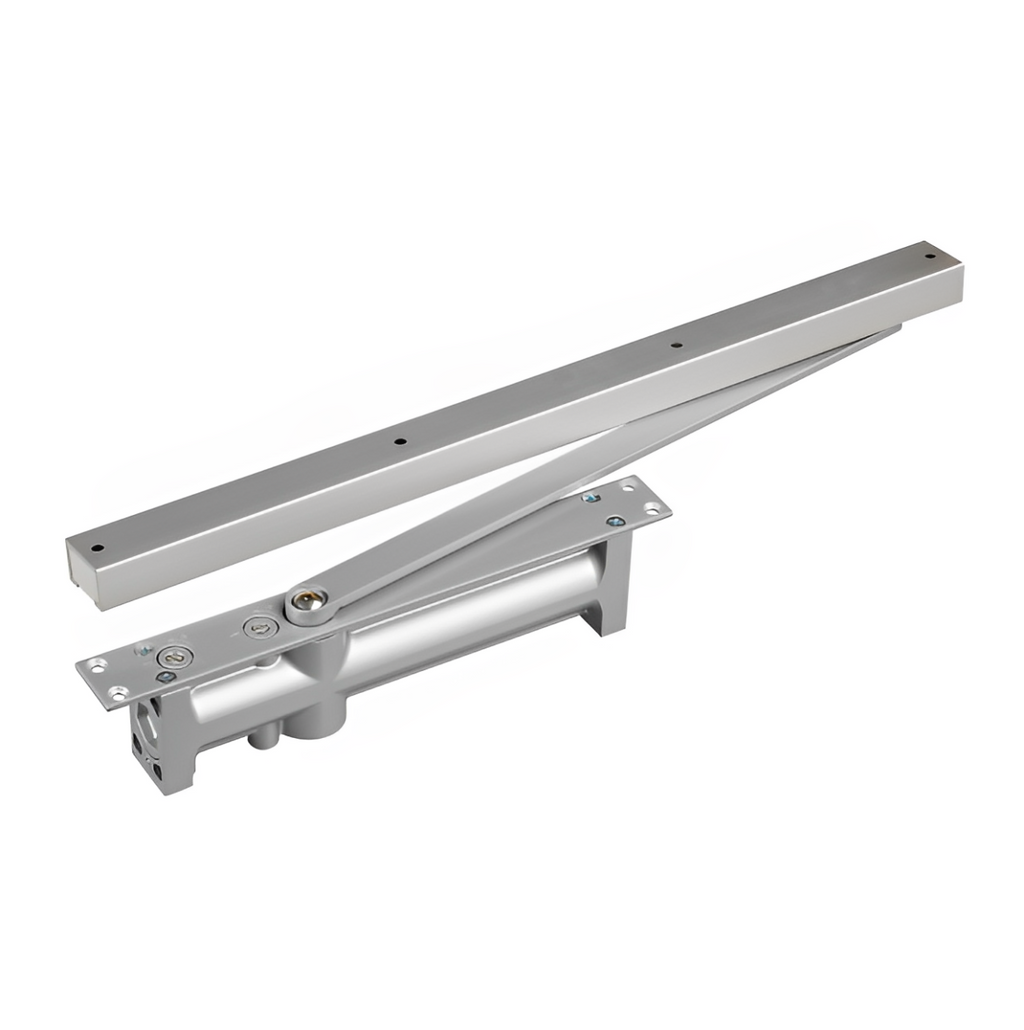

The concealed hydraulic door closer with slide rail is the perfect solution for controlling the closing of passage doors while maintaining a clean and minimalist aesthetic, as it remains completely recessed and invisible when the door is closed.
Main features
- Fully recessed mechanism: installed inside the door leaf and frame, preserving the visual lines of the room without visible arms.
- Dual-valve hydraulic control: allows for precise adjustment of closing speed and latching action.
- Capacity and resistance: suitable for doors up to 950 mm wide and a maximum weight of 60 kg.
- Robust steel body: maximum durability and smooth, continuous operation under daily traffic.
- Certified safety: approved according to European standards EN 1154 and fire resistance EN 1634-1.
Where to use it?
Designed for wooden or metal swing doors in designer homes, offices, executive suites, hotels, and technical passages where a secure automatic closing is required without altering the architectural aesthetics or the door design.
Achieve smooth, safe, and completely discreet closing for your doors with this highly reliable concealed system.
Technical specifications
| Brand | TiendaManilla |
|---|---|
| Material | Steel |
| Finish | Satin nickel |
| Mechanism type | Concealed recessed hydraulic with slide rail |
| Adjustment | 2 control valves (closing speed and latching action) |
| Maximum door width | 950 mm |
| Supported weight | Up to 60 kg |

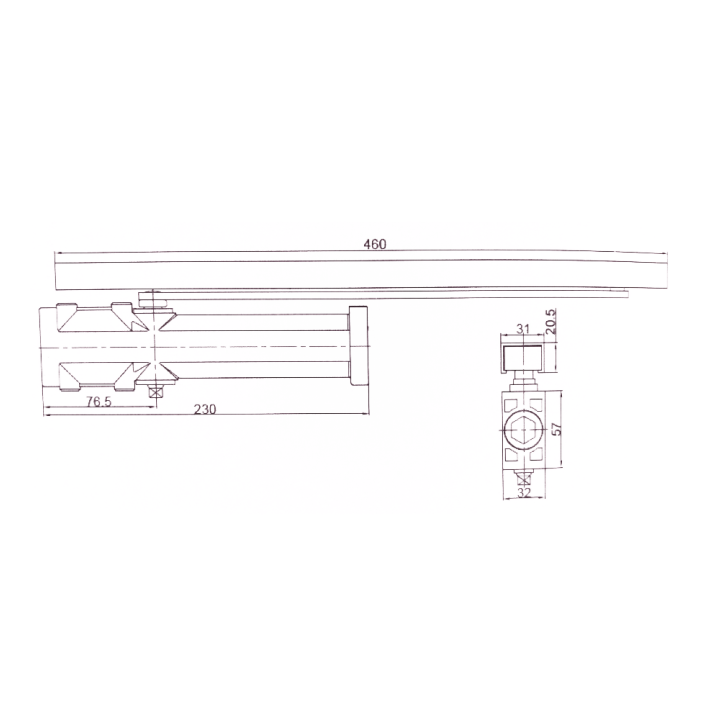

| Body length | 230 mm |
| Rail length | 460 mm |
| Certifications | EN 1154:1996/A1:2002/AC:2006 and EN 1634-1:2014 (fire) |
| EAN code | 8435840009623 |
