Description

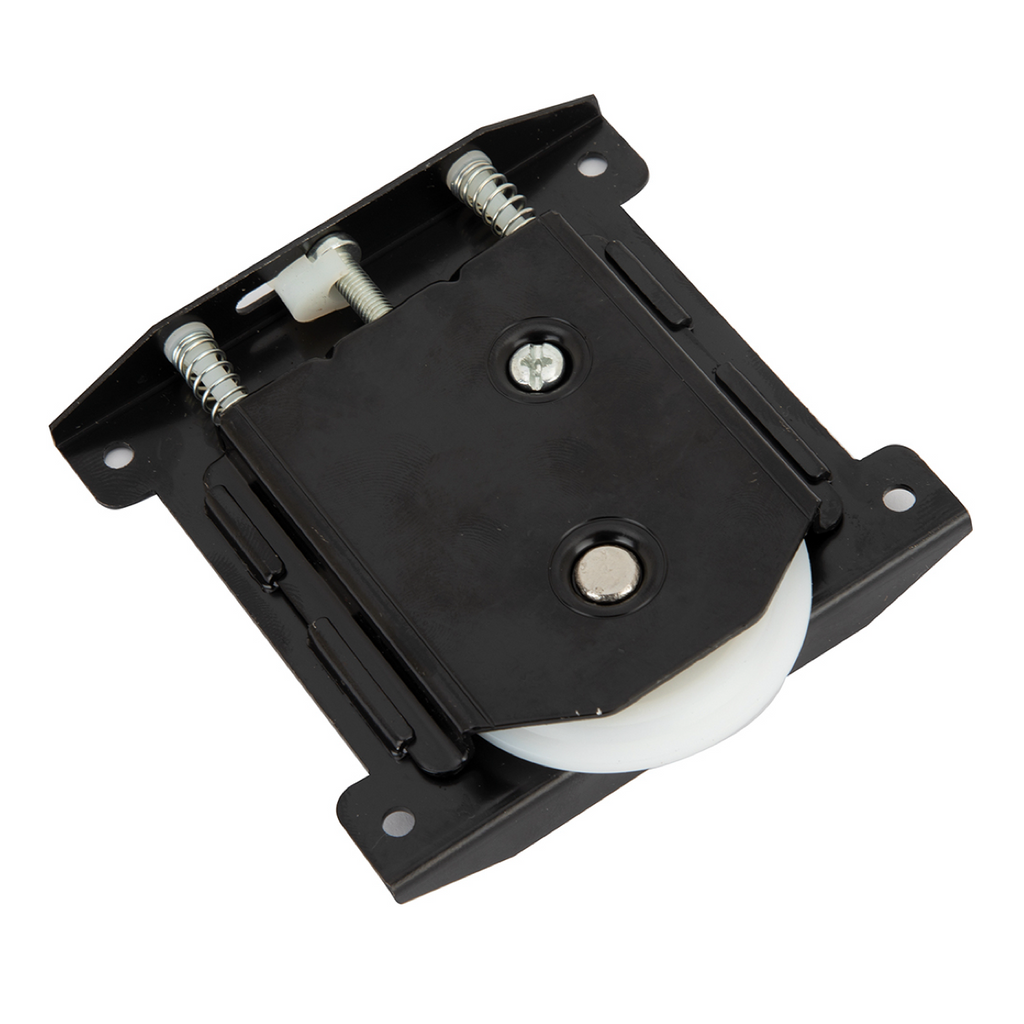

Renew the sliding motion of your furniture with this bottom wheel for sliding wardrobe doors. Designed specifically to support the continuous weight of sliding panels, it offers smooth, quiet, and stable rolling that prevents jamming or derailing during everyday use.
Main features
- High load capacity: supports up to 70 kg of weight per mechanism, ensuring excellent stability for wooden or board wardrobe doors.
- Sturdy metal structure: made with a black lacquered steel body to ensure high durability and structural rigidity against continuous wear.
- Smooth sliding wheel: white technical plastic roller that minimizes friction on the bottom rail and reduces noise during opening and closing.
- Mechanism with spring and adjustment: incorporates compensation springs and an adjustment screw to easily level the door height and absorb mounting unevenness.
- Quick and secure mounting: plate with 3.8 mm countersunk holes, ready to be screwed directly into the inside or bottom of the panel.
Where to use it?
It is the ideal hardware for manufacturing or replacing worn-out wheels in built-in wardrobes, bedroom closets, wardrobe fronts, and sliding furniture for the home or office.
Restore fluid, safe, and quiet movement to your sliding doors with reliable and easy-to-install hardware.
Technical specifications
| Brand | TiendaManilla |
|---|---|
| Material | Steel and plastic |
| Finish | Black |
| Load capacity | Up to 70 kg |
| Total plate width | 98 mm |
| Total plate height | 93 mm |
| Mechanism thickness | 14 mm |

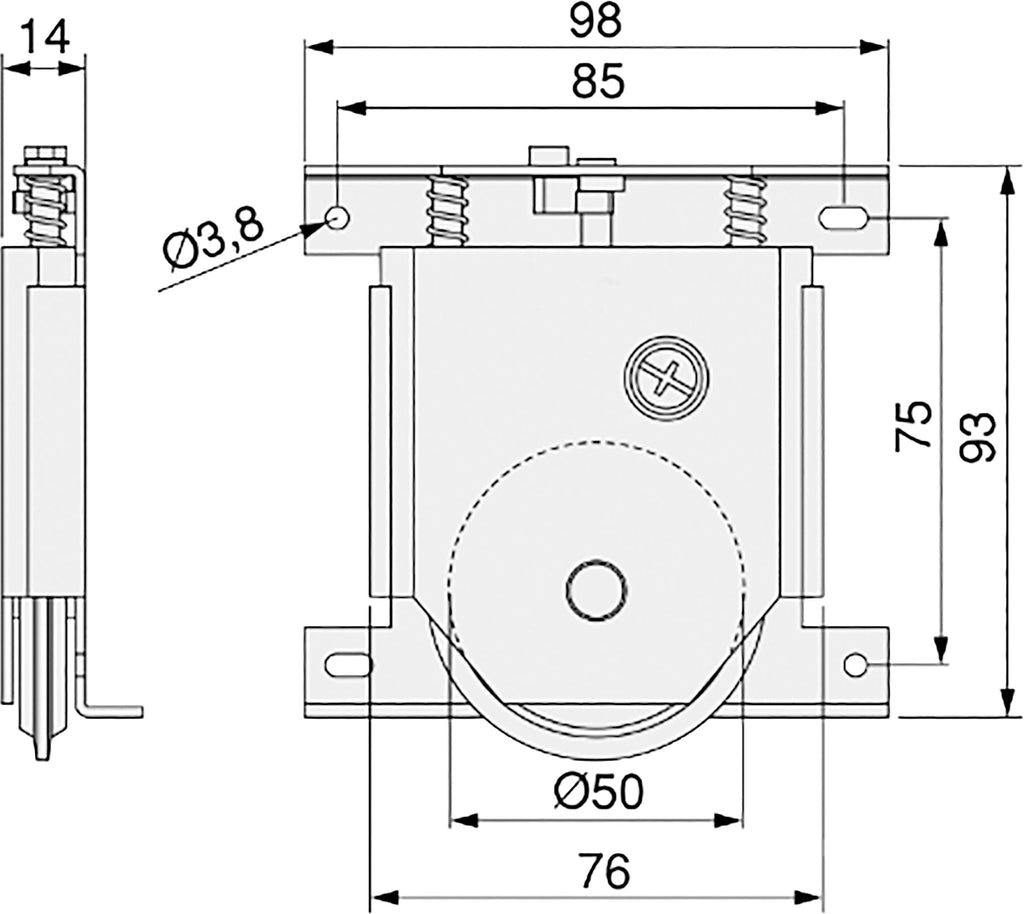

| Wheel diameter | 50 mm (according to drawing) / 60 mm (according to manufacturer) |
| Distance between top holes | 85 mm |
| Distance between vertical holes | 75 mm |
| Mounting hole diameter | 3.8 mm |
| Mounting type | Screw-in |
| Recommended use | Sliding wardrobe doors |
| EAN code | 8435840010087 |
